LUXON Safe Fill Containment Two Cylinders
Overview
Design for positive pressure air breather cylinder filling .It is applicable for use in a range of industries including: Fire fighting industry ,
Mining ，Diving and other established Gas Filling Centres.In order to increase filling efficiency and safety and avoid accident during fi
lling .Due to the increase in temperature when filling a cylinder，there is a risk that the cylinder may explode or fracture under the high
pressure and heat. The debris set off by the high pressured air (more than 6000 Psi) during an explosion, is a huge danger to the oper
ator.LUXON gas filling explosion proof cabinet can help operators avoid such problems effectively.The thickness of the high strength
steel frame is about 15-20 mm, this is triple or quadraple the thickness of other ordinary gas filling cabinets in the industry. Even so, t
he cabinet does not hinder operations with regards to its weight.
Specification
Dual-mode or single-mode cascading control
Housing double 5MM steel plate structure
HMI interface/Manual control
Safety door lock structure
Flow adjustable
Mechanical/manual opening and closing
400bar pressure safety level protection
Suitable for 6L,8L,9L,12L cylinders
The loading height is ergonomic

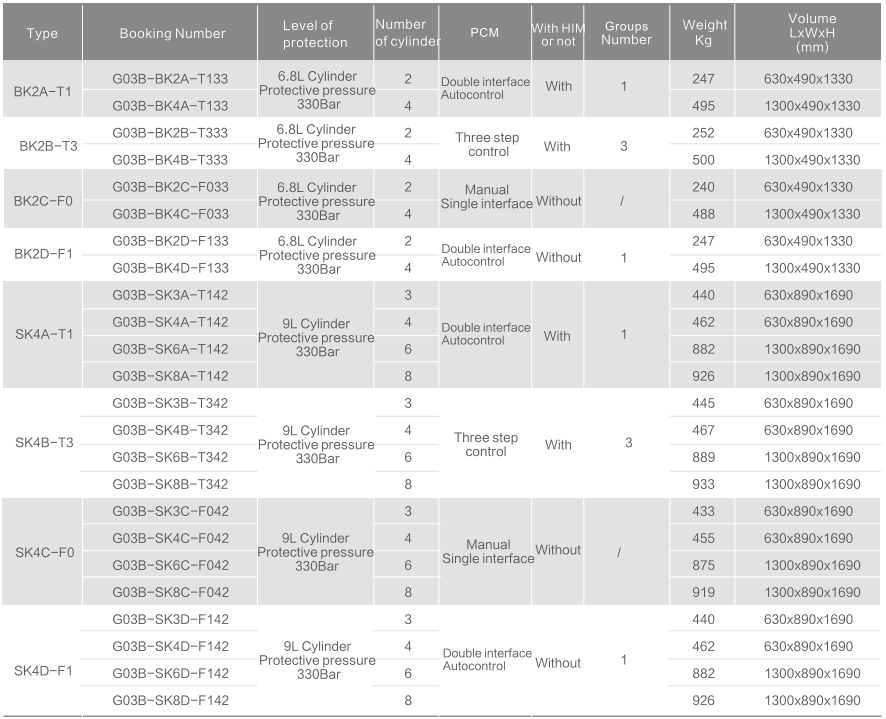

Parameters
